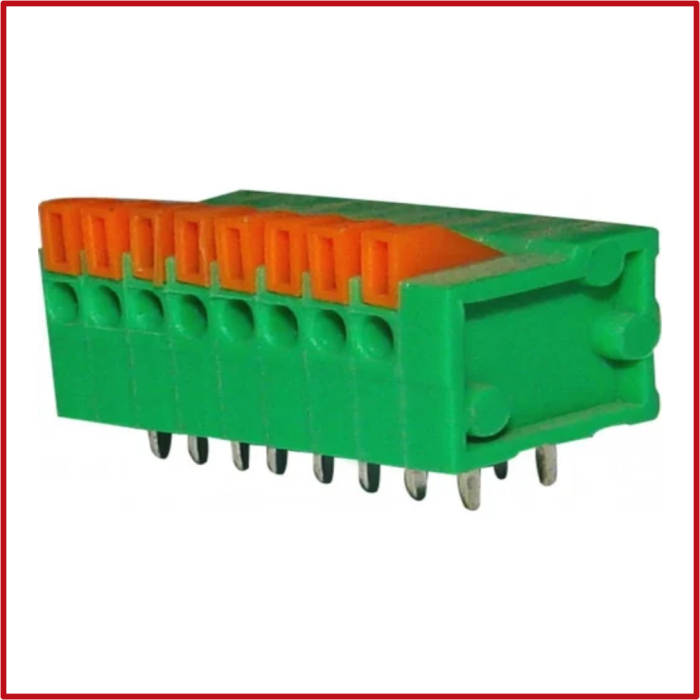

Screwless Push in Fix PCB 8-way connector

ZAR 18.20 ZAR 15.83

Out of stock

SKU

CON8-0019-000

Description:

A screwless push-in fix PCB 8-way connector is a multi-pole terminal block designed for printed circuit boards, enabling rapid, tool-free wire connections.
Instead of screws, it employs a spring clamp mechanism to secure wires once they are pushed in, making it perfect for applications that require several connections in a compact form.
Type: PCB terminal block connector.
Connection method: Screwless, push-in spring clamp.
Ways: Eight (eight wire connecting locations).
Mounting: Soldered directly to the PCB.
Ease of Use: Wires are inserted directly and secured using spring tension instead of screws.

Pitch (pin spacing): Commonly 3.5 mm, 5.0 mm, or 5.08 mm depending on design and current rating.
Current Rating:

Voltage Rating: 250–300 V AC/DC.
Wire Size Supported: 0.2–2.5 mm² (24–12 AWG).
Housing Material: Flame retardant thermoplastic (UL94 V 0 rated).
Contacts: Copper alloy with tin or nickel plating for conductivity and corrosion resistance.
Compliance: CE, UL, and RoHS standards.
