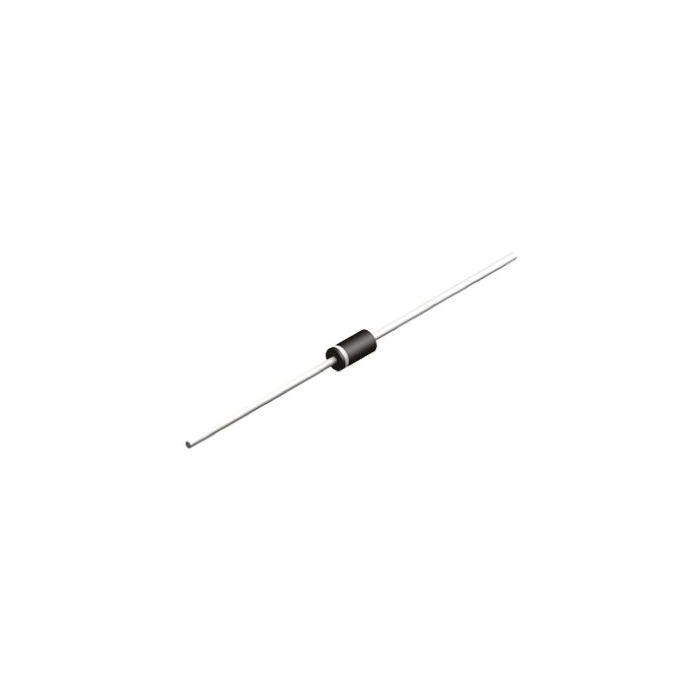

Semi FR106G R0 Fast Recovery Diode, 800V 1A, 2-Pin DO-41
Semi FR106G R0 Fast Recovery Diode, 800V 1A, 2-Pin DO-41:
The FR106G R0 is a fast recovery diode designed for high-speed switching and power rectification applications. With a peak inverse voltage (PIV) of 800V and a maximum forward current rating of 1A, it offers fast recovery times, making it suitable for use in high-frequency circuits, power supplies, and other applications where quick switching is required.
Specifications:
- Peak Inverse Voltage (PIV): 800 V
- Average Forward Current (I_F(av)): 1 A
- Forward Voltage (V_F): 1.1 V (at I_F = 1 A)
- Reverse Recovery Time (t_rr): 300 ns
- Reverse Leakage Current (I_R): 5 µA (at V_R = 800 V)
- Package Type: DO-41
- Operating Temperature Range: -65°C to 150°C
- Applications: Power rectification, power supplies, high-frequency circuits, and motor control
