Sensor-Arduino Active Buzzer

ZAR 12.80 ZAR 11.13
In stock
SKU
ARD-0029-G01

Sensor-Arduino Active Buzzer:

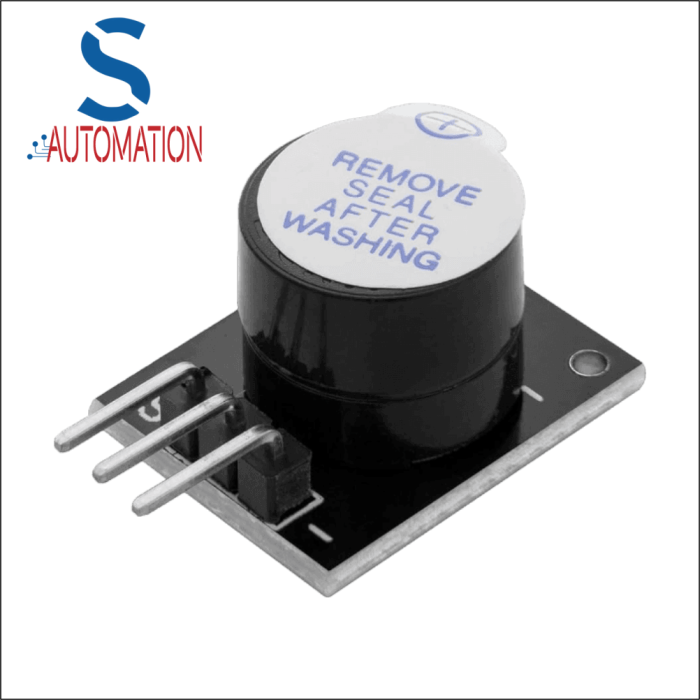

  • The Keyes KY-012 Active Buzzer Module is compatible with Arduino, and produces a single-tone sound when the incoming signal is high.
  • The KY-012 Active Buzzer Module is an excellent option if you're searching for a straightforward yet efficient solution to include audio in an electronics or Arduino project.
  • Its basic function is to just emit a single tone sound when the incoming signal is high.
  • In order to create a custom alarm or detection system that can emit an audio signal upon receiving the electronic high signal from the Arduino controller board, this enables single-pin operation on an Arduino Board.

Specifications:

  • Operating Voltage: 3.5V - 5.5V
  • Maximum Current: 30mA @ 5VDC
  • Resonance Frequency: 2.5kHz ±300Hz
  • Minimum Sound Output: 85dB @ 10cm
  • Working Temperature: -20°C to 70°C
  • Storage Temperature: -30°C to 105°C
  • Dimensions: 18.5 x 15mm
