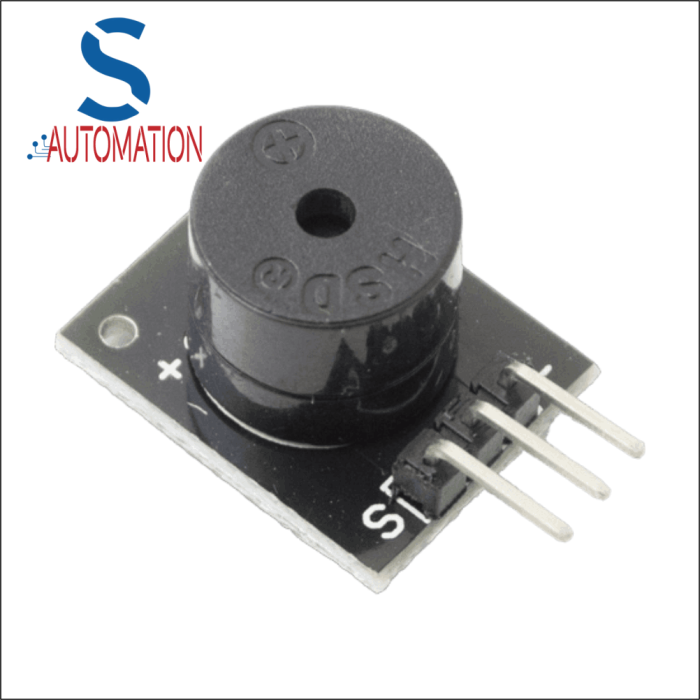

Adruino Passive Buzzer Module

ZAR 12.80 ZAR 11.13
Out of stock
SKU
ARD-0028-G01

Adruino Passive Buzzer Module:

This module serves as a passive buzzer's breakout board. The work involved with passive buzzers is slightly higher than that of their active buzzer counterparts. One of these buzzers requires the user to feed in an oscillating waveform in order to make a tone; the amplitude of this waveform directly correlates to the "loudness" of the sound that is produced. The primary benefit of passive buzzers over active buzzers is their ability to produce tones at multiple frequencies.

Specifications:

  • Model: KY-006
  • Operating Voltage: 1.5 – 15VDC
  • Operating Current: < 25mA
  • Frequency Range: 20Hz – 2.5kHz
  • Connect Ground to the “-” pin, and connect your driving signal to the “S” pin
More Information
SKU ARD-0028-G01
