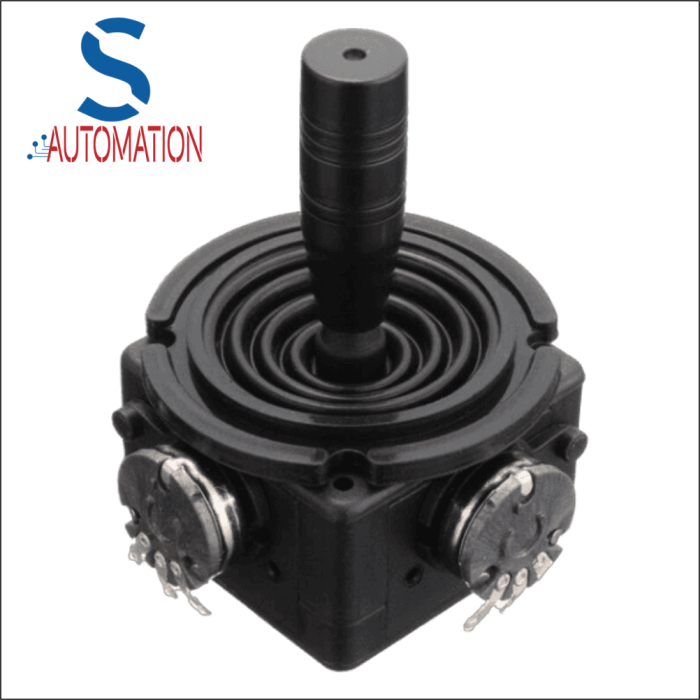

Arduino 5K Joysrick
Arduino 5K Joysrick
- This two-axis joystick can be utilized in a variety of robotic and industrial projects, as well as control systems.
- It has a 50º inclination on both the X and Y axes.
- When the joystick's 5K potentiometers are removed, they will reach the center position.
Specifications:
- Resistance Value: Standard 5KΩ.
- Resistance Tolerance: ±20%.
- Independent Linearity: ±1%.
- Resolution: Essentially Infinite.
- Temperature Coefficient of Resistance: ±400 ppm/°C.
- Output Smoothness: 0.5% max.
- X & Y Axis Electrical Angle: ±25°.
- Z-Axis Electrical Angle: ±45°.
- Insulation Resistance: 50MΩ, 500VDC, 60 sec.
- Working Torque: X and Y axis 90gf and 250gf, Z axis 330gf.
- Restoration Error Rate: ±0.03KΩ.
- Prolepsis Mechanical Life Cycle: 500,000 cycles.
- Working Temperature Range: -10~80°C.
