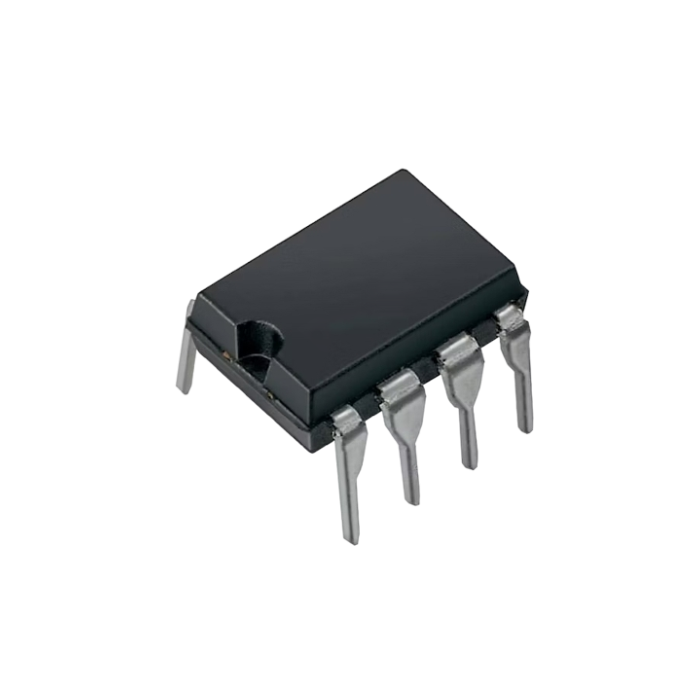

SN75179 Integrated Circuit 8Pin
Description:
The SN75179 is a robust differential driver and receiver pair designed by Texas Instruments for balanced transmission-line applications. It’s widely used in RS-422 and RS-485 communication systems, especially in full-duplex data links over long distances. With its high noise immunity, thermal shutdown protection, and ability to handle wide common-mode voltage ranges, it’s a go-to solution for industrial automation, networking, and serial communication interfaces.
Specifications:
- Function: Differential driver and receiver pair
- Protocol Support: RS-422, RS-485, ITU V.11
- Duplex Mode: Full-duplex (1 driver / 1 receiver)
- Supply Voltage: 4.75 V to 5.25 V
- Bus Voltage Range: –7 V to +12 V
- Receiver Input Sensitivity: ±200 mV
- Receiver Input Hysteresis: 50 mV (typical)
- Receiver Input Impedance: ≥12 kΩ
- Driver Output Current: Up to 60 mA
- Thermal Shutdown: Yes (at ~150°C junction temp)
- Operating Temperature Range: 0°C to +70°C
- Package Options: 8-pin PDIP, SOIC, or SOP
- Mounting Type: Through-hole or surface-mount
| SKU | INC-0375-C09 |
|---|
