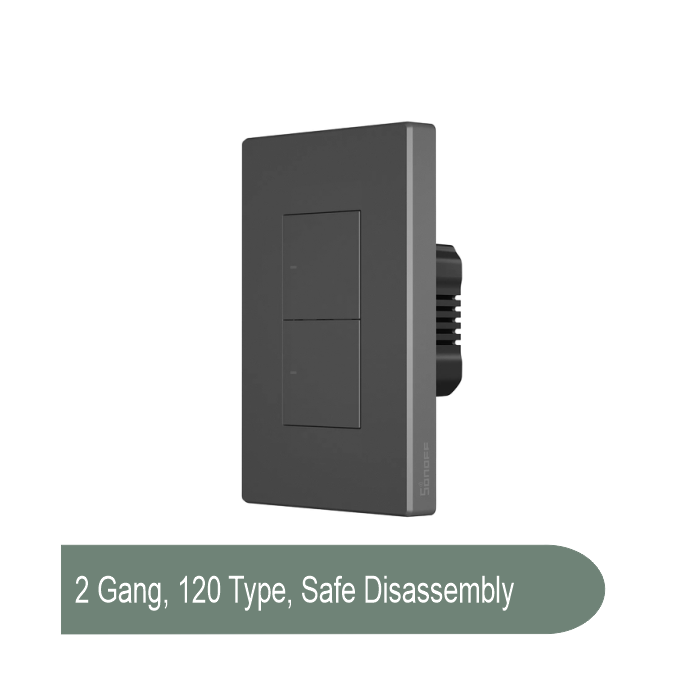

SONOFF SwitchMan Smart Wall Switch M5-C2-120

Features:

Get Things Done: When you are busy, you can turn on the light just by your voice. Supports voice control by working with Alexa, Google Home, Alice and Siri shortcut.

Press and Go: The M5 also provide physical buttons for local control. Quick-responsive, can be touched with gloves on and anyone can easily use the M5.

Smart Scene: Add a linkage with DW2-WIFI door sensor which makes the light turn on automatically when you open the door. Link with NSPanel to control more home appliances by just a single tap.

Schedule: Set a schedule for M5 to control the lights. When the time is up, bedroom light can be turned on automatically.

Two-Way control: With SONOFF SwitchMan Scene Controller R5, you can control the same light from two positions.

It can be managed using the eWeLink app, where you can manage your smart devices at any time.

Features a built-in LED indicator whose brightness can be adjusted to find switch.

“eWeLink-Remote” Control: M5 is a smart switch with the “eWeLink-Remote“ gateway function. If you want to use the “eWeLink-Remote” control function, you need to use it with the S-MATE or the R5 scene remote controller

It’s designed for safe performance with a working temperature range of -10°C to 40°C and supports a voltage of 100-240V AC 50/60Hz12.

4 Steps to Install:

1.        Put the power module in the Switch Frame.

2.        Place the Switch Frame above the mounting box.

3.        Tighten the screws.

4.        Install the switch module.

Specifications:

Model: M5-1/2/3C-86 M5-1/2/3C-80

Gang: 2-gang

Casing material: PC V0

Working temperature: -10℃~40℃

Wi-Fi: IEEE 802.11 b/g/n 2.4GHz

Certification: 86: CE/CQC/SRRC 80: CE

Current output: M5-2C: 10A (5A/Gang)

Output: 100-240V AC 50/60Hz

Input: 100-240V AC 50/60Hz 5A

Max. power: M5-2C: 2200W (1100/Gang)
