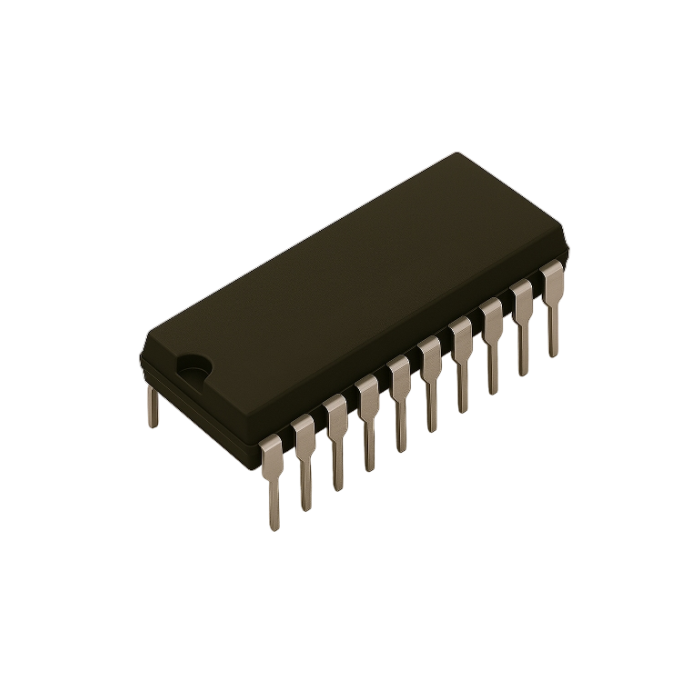

SP233AEP Integrated Circuit 20Pin
Description:
The SP233AEP is an enhanced RS-232 line driver/receiver IC originally developed by Sipex Corporation (later acquired by MaxLinear). It’s designed for full-duplex serial communication and is pin-compatible with earlier SP231 and SP232 devices. This IC integrates two drivers and two receivers, making it ideal for RS-232 interfaces in embedded systems, modems, and industrial equipment. It features a high slew rate and robust ESD protection, enabling reliable data transmission over longer cables and in electrically noisy environments.
Specifications:
- Function: RS-232 transceiver (2 drivers / 2 receivers)
- Protocol Support: RS-232D and V.28
- Duplex Mode: Full-duplex
- Supply Voltage: 4.5 V to 5.5 V (single supply)
- Data Rate: Up to 120 kbps
- Slew Rate: 10 V/µs under load
- Receiver Input Range: ±30 V
- Receiver Hysteresis: 500 mV
- Output Type: 3-state TTL/CMOS compatible
- Shutdown Current: ≤1 µA
- Operating Current: ~15 mA
- Charge Pump Capacitors: 0.1 µF
- Package: 20-pin PDIP (0.300", 7.62 mm)
- Operating Temperature Range: –40°C to +85°C
- Mounting Type: Through-hole
| SKU | INC-0368-C09 |
|---|
