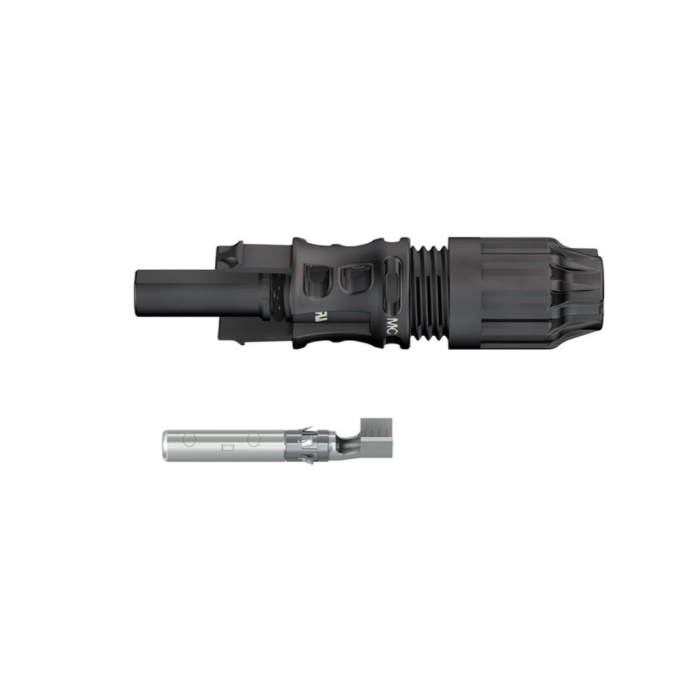

Staubli PPV-KBT4-EVO 2/61-UR Male MC4 1500V DC
Description:
- Snap-in lock.
- Locking using a safety lock clip PV-SSH4 in line with NEC 2011, which can only be released with the tool.
- Proven MULTILAM technology with exceptional long-term stability offers consistent low performance loss across the plug connector's entire service life.
- Tried and tested plug connectors, with 14 years of experience in the field.
- Suitable for assembly in 4- and 6-mm cross-sections.
Specifications:
- Type: Male.
- Voltage: 1500 V DC.
- Connector system: Ø 4 mm.
- Ambient temperature range: -40 °C ... +85 °C.
- Transportation/storage temperature range: -30 °C/+60 °C.
- Transportation/storage relative humidity: < 70 %.
- Upper limiting temperature: 115 °C (IEC).
- Degree of protection mated: IP65/IP68 (1 m, 168 h).
- Degree of protection, unmated: IP2X.
- Overvoltage category: III.
- Contact resistance of plug connectors: < 0.2 mΩ.
- Locking system: Locking type.
- Class (IEC): II.
- Contact system: MULTILAM.
- Type of termination: Crimping.
- Warning: Do not disconnect under load.
- Contact material: Copper, tin plated.
- Insulation material: PA.
- Flame class: UL94-V0.
- Ammonia resistance (TÜV Rheinland certified acc. to 2 PfG 1911/03.2011): Q60139020-0001.
- TÜV-Rheinland certified according to IEC 62852:2014+Amd.1:2020: R 60127169.
- UL recognized component in accordance with UL6703: E343181.
- Maximum altitude above sea level for operation: 5000 m.
- Temperature Level according to IEC TS 63126: Level 2.
