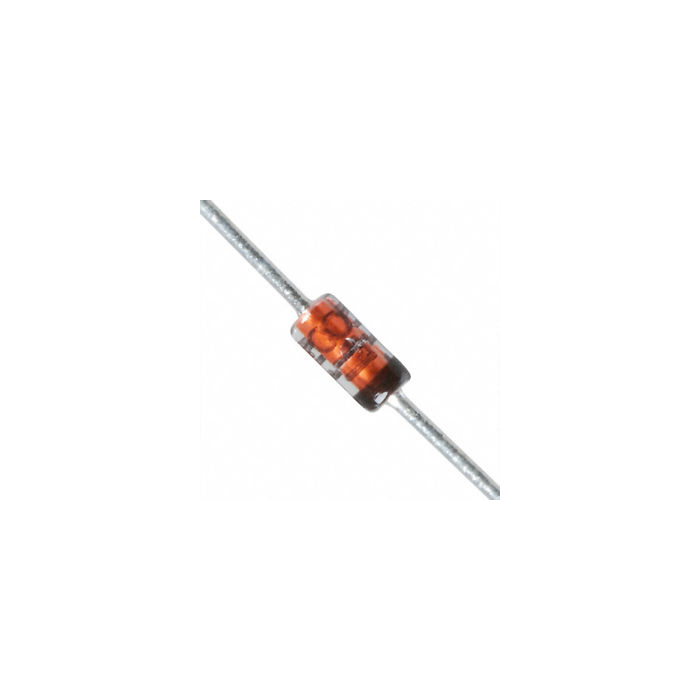

Switching Diode 75V 150MA DO35
Switching Diode 75V 150MA DO35:
The Switching Diode 75V 150mA in a DO-35 package is designed for use in high-speed switching applications. With a reverse voltage rating of 75V and a maximum forward current of 150mA, it is suitable for signal rectification, clamping, and switching in electronic circuits.
Specifications:
- Peak Inverse Voltage (PIV): 75 V
- Forward Current (I_F): 150 mA
- Forward Voltage (V_F): 1.1 V (at I_F = 100 mA)
- Reverse Leakage Current (I_R): 5 µA (at V_R = 75 V)
- Reverse Recovery Time (t_rr): 4 ns
- Package Type: DO-35
- Operating Temperature Range: -65°C to 150°C
- Applications: High-speed switching, signal rectification, and clamping
