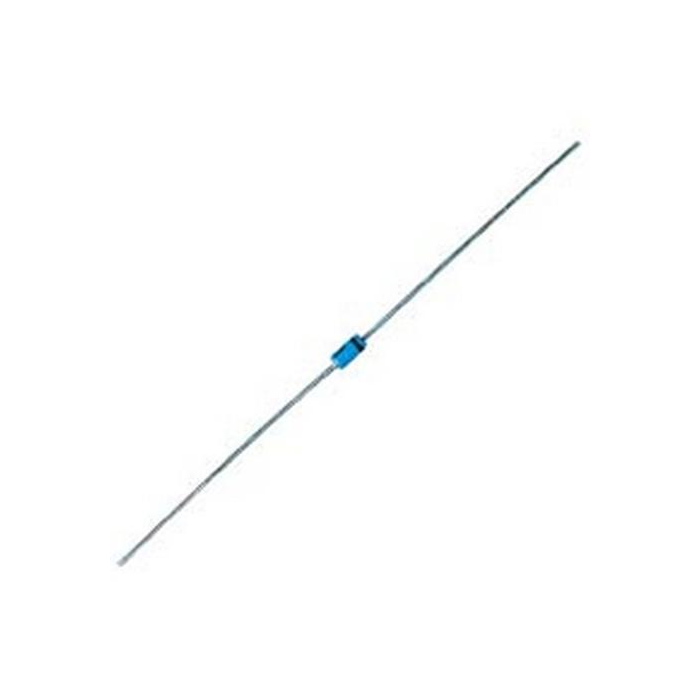

Switching Diode 75V 75MA DO35
Switching Diode 75V 75MA DO35:
The Switching Diode 75V 75mA in a DO-35 package is designed for use in low-power switching applications. With a reverse voltage rating of 75V and a maximum forward current of 75mA, it is ideal for use in signal processing, rectification, and low-current switching circuits.
Specifications:
- Peak Inverse Voltage (PIV): 75 V
- Forward Current (I_F): 75 mA
- Forward Voltage (V_F): 1.1 V (at I_F = 50 mA)
- Reverse Leakage Current (I_R): 5 µA (at V_R = 75 V)
- Reverse Recovery Time (t_rr): 4 ns
- Package Type: DO-35
- Operating Temperature Range: -65°C to 150°C
- Applications: Signal switching, rectification, clamping, and protection circuits
