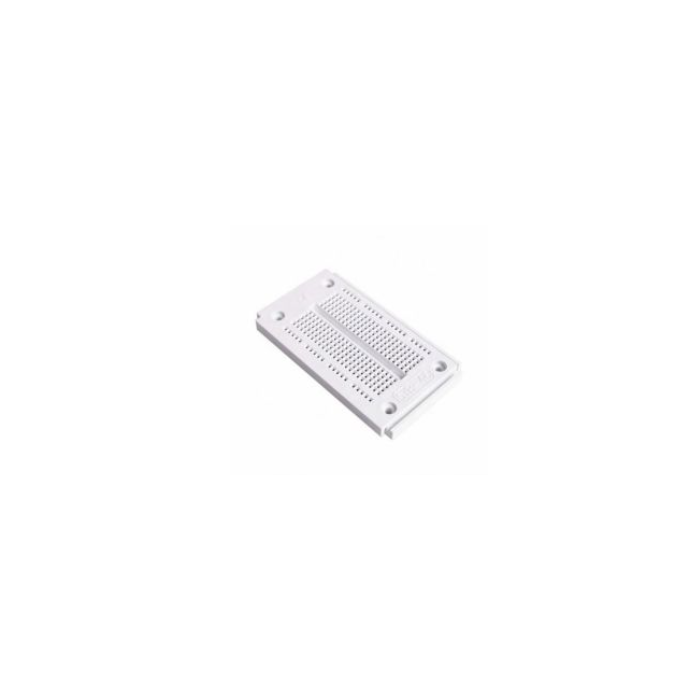

SYB-46 breadboard Test board 90*52*8.5mm
Description:
The SYB-46 is a compact, solderless breadboard designed for quick prototyping and testing of small electronic circuits. With 400 tie points, it is ideal for small-scale projects, educational purposes, and hobbyist experimentation. Its standard 2.54 mm pitch allows compatibility with most components and jumper wires.
Specifications:
- Total holes: 400 tie points (300 terminal points and 100 power rail points)
- Material: ABS plastic housing with phosphor bronze nickel-plated contacts
- Dimensions: 90 mm x 52 mm x 8.5 mm
- Pitch: 2.54 mm (0.1 inch)
- Power rails: 2 (one on each side)
- Voltage rating: Up to 500V
- Current rating: Up to 3A
- Adhesive backing: Double-sided adhesive layer for mounting
- Compatibility: Supports standard jumper wires and components with 2.54 mm pin spacing
- Application: Perfect for compact circuit designs, educational use, and prototyping small projects.
