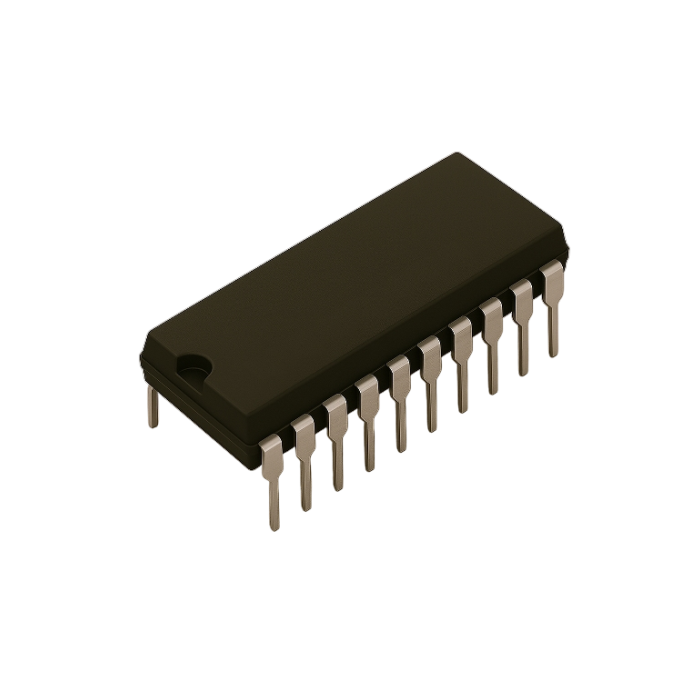

T74LS245B1 OCTAL BUS Transceiver integrated circuit 20PIN
Description:
The T74LS245B1 is an octal bus transceiver designed for bidirectional data transfer between two buses. It features three-state outputs, allowing it to interface with multiple devices without signal interference. This IC is commonly used in microprocessor-based systems for buffering and controlling data flow.
Specifications:
- Logic Type: Octal Bus Transceiver
- Number of Channels: 8
- Supply Voltage: 4.75V to 5.25V DC
- Propagation Delay: 8ns to 12ns
- Output Type: 3-State
- Input Type: PNP for reduced DC loading
- Current Drive Capability: 24mA (sink), -15mA (source)
- Operating Temperature Range: 0°C to 70°C
- Package Type: 20-pin DIP or SOI
| SKU | INC-0254-C09 |
|---|
