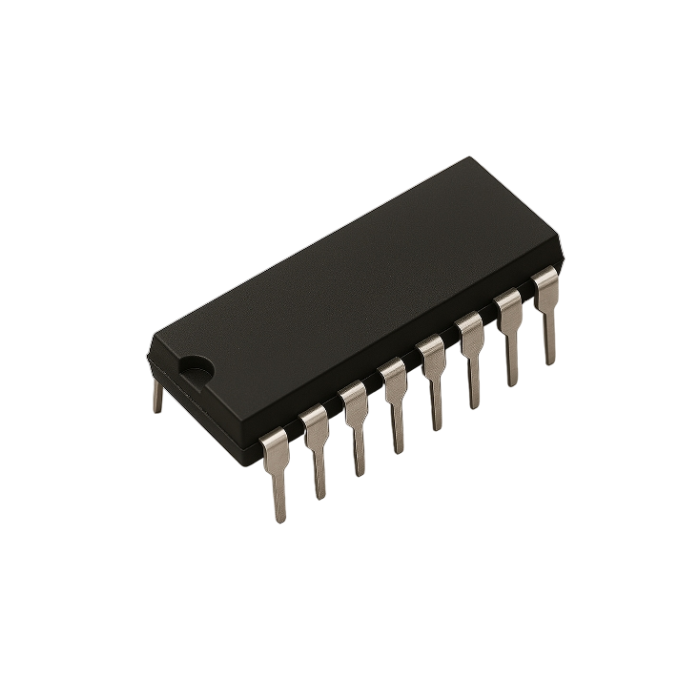

TC4050BP Integrated Circuit 16Pin

ZAR 274.61 ZAR 238.79

In stock

SKU

INC-0332-C09

Description:

The TC4050BP is a non-inverting hex buffer/converter IC from Toshiba’s CMOS logic family. It’s designed to interface high-voltage CMOS logic levels with lower-voltage systems like TTL or 5V CMOS, making it a handy level shifter. With six independent buffers in one package, it’s ideal for signal conditioning, voltage translation, and driving moderate loads in digital circuits. Its high input voltage tolerance and low power consumption make it especially useful in mixed-voltage environments.

Specifications:

Function: Hex non-inverting buffer/voltage level converter
Package: 16-pin DIP (Dual In-line Package)
Number of Buffers: 6 independent channels
Input Voltage Tolerance: Up to VSS + 18V, regardless of VDD
Operating Voltage Range: 3V to 18V
Output Drive Capability: Can directly drive one TTL or DTL input
Propagation Delay: ~25ns (at VDD = 5V)
Power Dissipation: Very low (CMOS technology)
Temperature Range: –40°C to +85°C
Applications:
-Voltage level shifting
-Signal buffering
-Interfacing between CMOS and TTL logic families
-General-purpose digital signal routing
