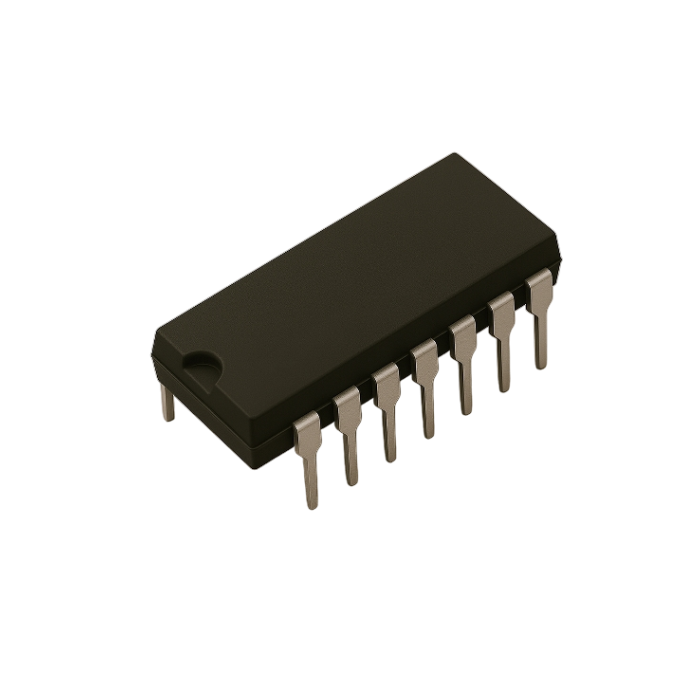

TC4093BP Integrated Circuit 14Pin

ZAR 9.95 ZAR 8.65

In stock

SKU

INC-0333-C09

Description:

The TC4093BP is a quad 2-input NAND gate IC with Schmitt trigger inputs, part of Toshiba’s CMOS logic family. It’s designed for noise-immune digital signal processing, making it ideal for waveform shaping, pulse generation, and logic-level conversion. Each gate features hysteresis thanks to the Schmitt trigger configuration, which helps eliminate signal chatter and ensures clean transitions—especially useful in noisy or slowly changing input environments.

Specifications:

Function: Quad 2-input NAND gate with Schmitt trigger inputs
Package: 14-pin DIP (Dual In-line Package)
Logic Family: CMOS
Input Type: Schmitt trigger (hysteresis for noise immunity)
Supply Voltage Range: 3V to 18V
Input Voltage Range: 0V to VDD
Output Drive: Standard CMOS output
Propagation Delay: ~200ns (typical at VDD = 5V)
Power Dissipation: Low (CMOS efficiency)
Temperature Range: –40°C to +85°C (depending on variant)
Applications:
-Waveform shaping
-Oscillators and multivibrators
-Pulse generators
-Logic-level converters
-Debouncing mechanical switches
