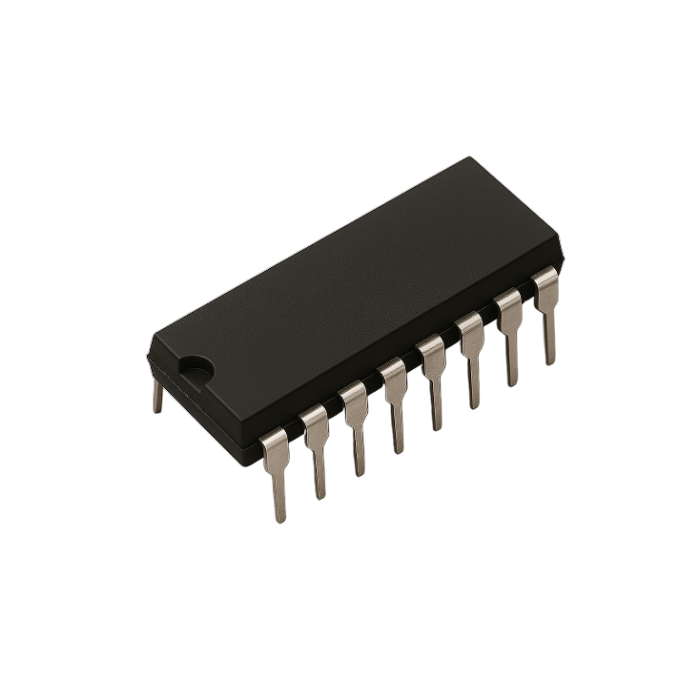

TMS 4164-20NL Integrated Circuit 16Pin

ZAR 456.21 ZAR 396.70

In stock

SKU

INC-0383-C09

Description:

The TMS4164-20NL is a vintage 64K × 1-bit NMOS dynamic RAM (DRAM) chip developed by Texas Instruments. It was widely used in early personal computers, video terminals, and arcade machines during the 1980s. This chip stores 65,536 bits of data and is organized as 65,536 words of 1 bit each, making it ideal for use in memory banks where multiple chips were combined to form wider data buses.

Specifications:

Function: Dynamic RAM (DRAM)
Memory Organization: 64K × 1-bit
Access Time: 200 ns (–20 speed grade)
Technology: SMOS (Scaled-MOS) N-channel
Supply Voltage: 5 V ±10%
Input/Output Levels: TTL-compatible
Control Signals: RAS (Row Address Strobe), CAS (Column Address Strobe), WE (Write Enable)
Refresh Scheme: 128-cycle, 2 ms
Package Type: 16-pin DIP (Dual In-line Package)
Mounting Type: Through-hole
Operating Temperature Range: 0°C to +70°C
