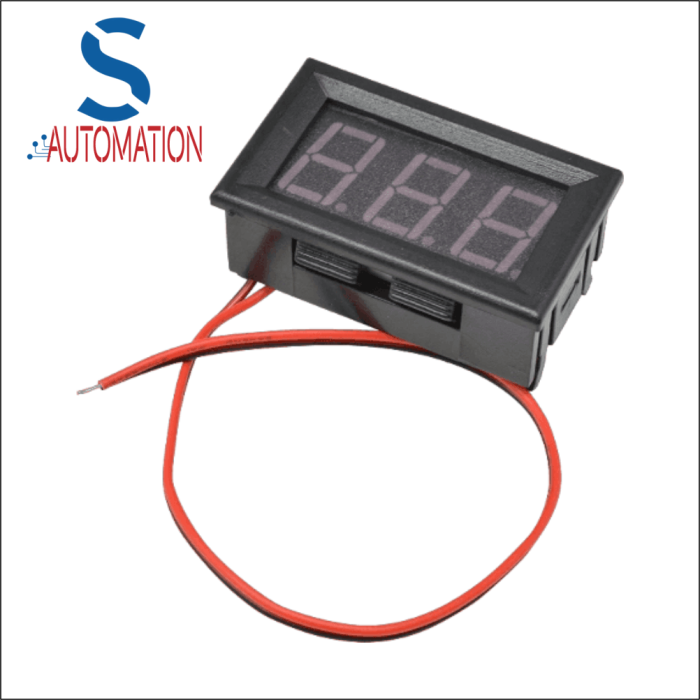

Two-wire DC voltage meter head 0.56 inch LED digital voltmeter RED

ZAR 28.78 ZAR 25.03

Out of stock

SKU

ARD-0081-M01

Two-wire DC voltage meter head 0.56 inch LED digital voltmeter BLUE

A tiny potentiometer allows for precise adjustments, and the device's decimal point moves automatically. There are just two wires to connect—the black to negative and the red to positive. This makes connecting the wires simple. Even when connected in reverse, the device won't burn and the screen won't show anything thanks to reverse connection protection. It is well-made, has a large screen and bright LED display, and is shielded from external force by a sturdy plastic shell. It's ideal for checking the battery life of solar-powered devices like cars, trailers, motors, and so forth.

Specifications:

Measuring Range : Red as low as 4.5V
Limit input : DC30.0 V. Note: input voltage higher than 30V May be permanently damaged!
Margin of error : Plus or minus 1%; When it is greater than or equal to 10V, the error is 0.3v;
When it is less than 10V, the error is 0.10
The input impedance : > 100 k
Working current : Red < 23mA
The refresh rate : About 300 ms
Display Mode : Three-digit "0.56 "LED digital tube
According to the color : Red
The length of the lead : 20 cm
Overall dimensions : 48 x 29 x 22 mm, length x width x thickness;
The size of hole : 46 x 27 mm
Net weight : 18 g
Gross Weight : 25 g
Working Temperature : - 20 ℃ ~ 65 ℃
