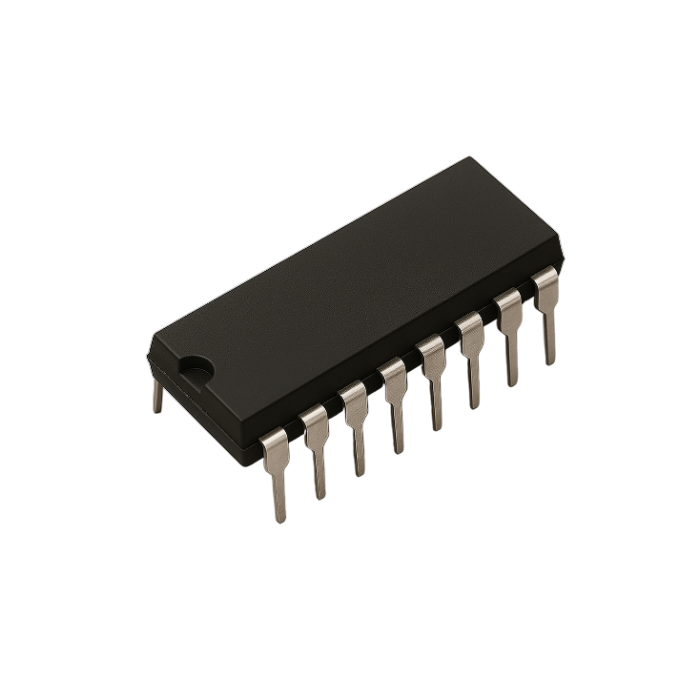

UPD416C-2 Integrated Circuit 16Pin

ZAR 15.58 ZAR 13.55

In stock

SKU

INC-0380-C09

Description:

The UPD416C-2 is a vintage 16K x 1-bit NMOS dynamic RAM (DRAM) chip manufactured by NEC. It was widely used in early computing systems, video terminals, and embedded applications where compact, high-speed memory was essential. This chip operates in page mode, allowing faster access to sequential memory addresses, and is housed in a 16-pin DIP package for through-hole mounting. With a 200 ns access time, it was a reliable performer in its era, often deployed in banks to form wider memory buses.

Specifications:

Function: Page Mode Dynamic RAM
Memory Organization: 16K × 1-bit (16,384 bits total)
Technology: NMOS
Access Time: 200 ns
Supply Voltage (V_CC): 5 V ±10%
Input/Output Type: TTL-compatible
Control Signals: RAS (Row Address Strobe), CAS (Column Address Strobe), WE (Write Enable)
Output Type: 3-state
Package Type: 16-pin DIP (Plastic Dual In-line Package)
Mounting Type: Through-hole
Operating Temperature Range: 0°C to +70°C
