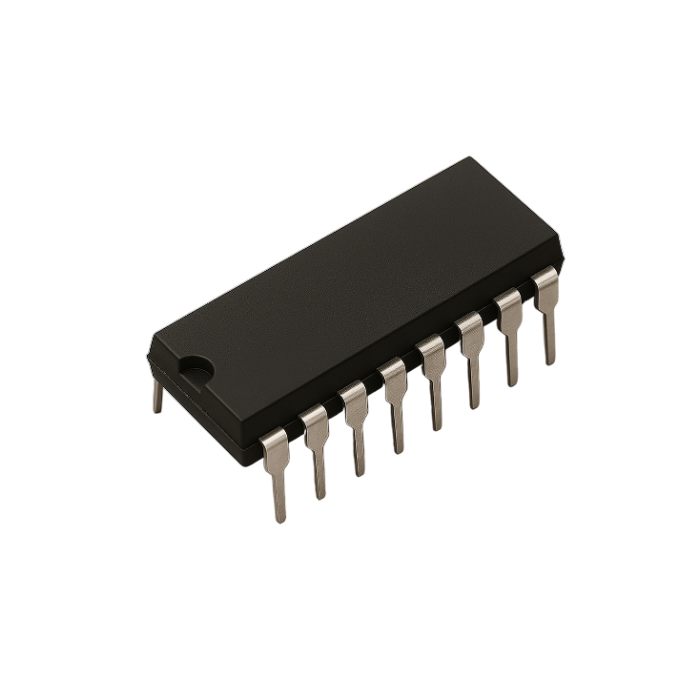

V4029D Integrated Circuit 16Pin

ZAR 8.72 ZAR 7.58

In stock

SKU

INC-0365-C09

Description:

The V4029D is a versatile presettable up/down counter IC, functionally similar to the CD4029. It integrates a four-stage binary or BCD (Binary-Coded Decimal) counter with full external control inputs, making it ideal for digital applications like clocks, frequency counters, and calculators. Its ability to switch between binary and decade counting modes, along with up/down control, gives it flexibility in both arithmetic and sequencing tasks. The V4029D is typically housed in a 16-pin DIP package and is well-suited for cascading in multi-stage counting systems.

Specifications:

Function: 4-bit presettable up/down counter
Counting Modes: Binary or BCD (selectable via control pin)
Counting Direction: Up or Down (controlled by logic input)
Package Type: DIP-16 (Dual In-line Package)
Supply Voltage (Vcc): 3 V to 15 V•Output Current: ~3.5 mA at Vcc = 10 V
Clock Frequency: Up to 6 MHz at Vcc = 10 V
Operating Temperature Range: –55°C to +125°C
Inputs: Preset Enable, Clock, Clock Inhibit, Binary/Decade Select, Up/Down Control, Carry In
Outputs: Q1–Q4 (4-bit output), Carry Out
Mounting Type: Through-hole
