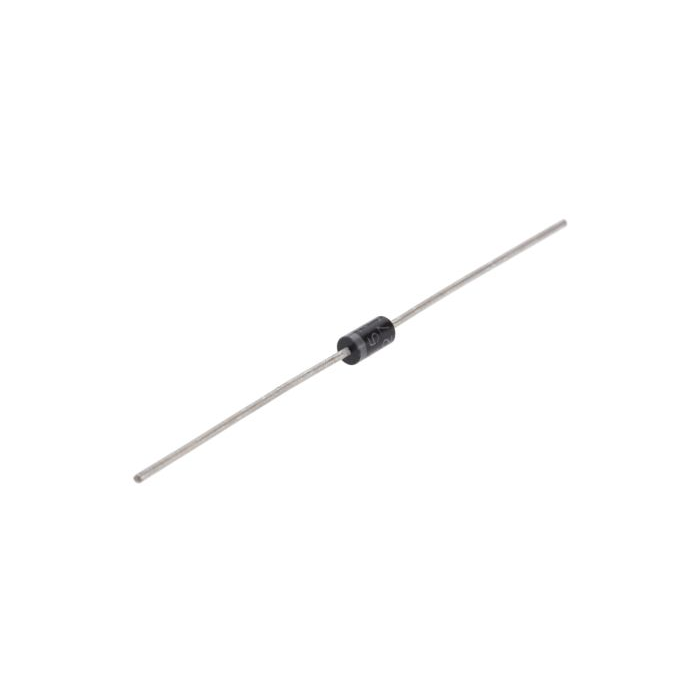

Vishay BA157-E3/54 Switching Diode, 1A 400V, 2-Pin DO-204AL
Vishay BA157-E3/54 Switching Diode, 1A 400V, 2-Pin DO-204AL:
The Vishay BA157-E3/54 is a fast switching diode designed for high-speed rectification and general-purpose applications. With a peak reverse voltage of 400V and a forward current rating of 1A, it is ideal for use in power supplies, inverters, and fast-switching circuits requiring reliable performance.
Specifications:
- Peak Reverse Voltage (V_RRM): 400 V
- Average Forward Current (I_F(av)): 1 A
- Forward Voltage (V_F): 1.1 V (at I_F = 1 A)
- Reverse Recovery Time (t_rr): 200 ns
- Reverse Leakage Current (I_R): 5 µA (at V_R = 400 V)
- Surge Current (I_FSM): 30 A (8.3ms half-sine wave)
- Package Type: DO-204AL (Axial)
- Operating Temperature Range: -65°C to 150°C
- Applications: Fast rectification, freewheeling diodes, and high-speed switching circuits
