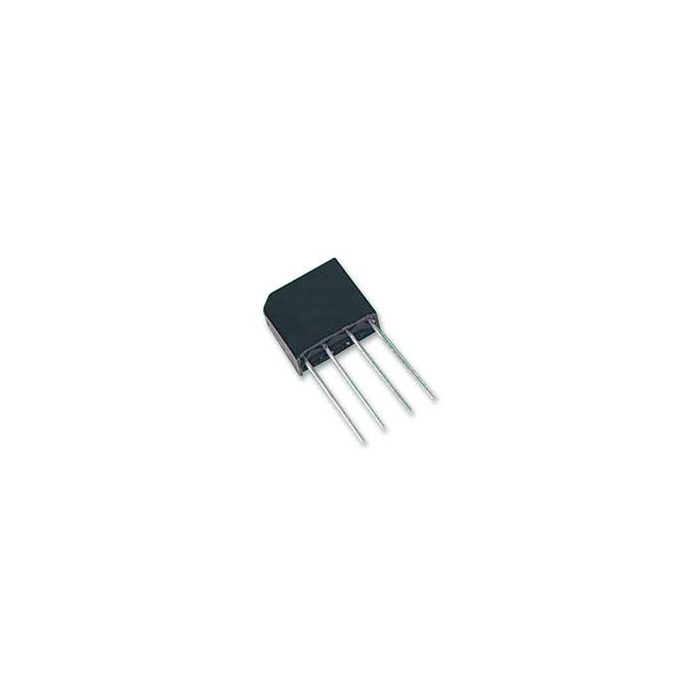

Vishay KBL06-E4/51, Bridge Rectifier, 4A 600V, 4-Pin KBL
Vishay KBL06-E4/51, Bridge Rectifier, 4A 600V, 4-Pin KBL:
The Vishay KBL06-E4/51 is a versatile and compact bridge rectifier designed for AC-to-DC conversion in medium-power applications such as power adapters, small motor controllers, and home appliances. Its KBL package is ideal for efficient heat dissipation and reliable performance.
Specifications:
- Maximum Repetitive Reverse Voltage (VRRM): 600V
- Average Forward Current (IF(AV)): 4A
- Surge Forward Current (IFSM): 200A (8.3 ms single half sine wave)
- Forward Voltage Drop (VF): 1.1V per diode at 4A
- Reverse Current (IR): 5 µA at 600V
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Package Type: KBL, 4-pin
