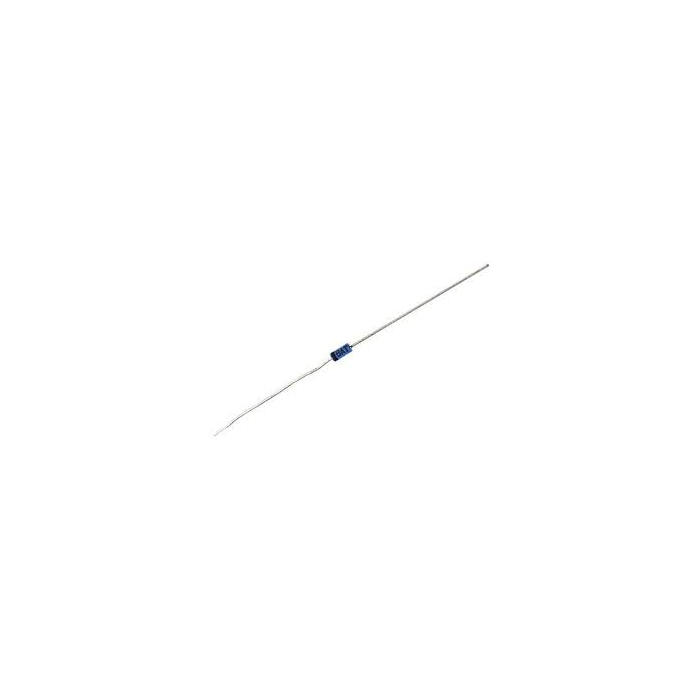

Zener Diode 4.7V 500mW 5% DO35
Zener Diode 4.7V 500mW 5% DO35:
The Zener Diode 4.7V 500mW is used for voltage regulation and clamping applications. It provides a stable 4.7V breakdown voltage with a 5% tolerance, making it ideal for use in circuits that require precise voltage regulation, protection against over-voltage, or voltage reference generation.
Specifications:
- Zener Voltage (V_Z): 4.7 V
- Power Dissipation: 500 mW
- Tolerance: ±5%
- Zener Impedance (Z_Z): 30 Ω (at I_Z = 20 mA)
- Maximum Zener Current (I_ZM): 106 mA
- Reverse Leakage Current (I_R): 5 µA (at V_R = 3.5 V)
- Forward Voltage (V_F): 1.1 V (at I_F = 10 mA)
- Package Type: DO-35
- Operating Temperature Range: -65°C to 200°C
- Applications: Voltage regulation, voltage reference generation, and over-voltage protection
