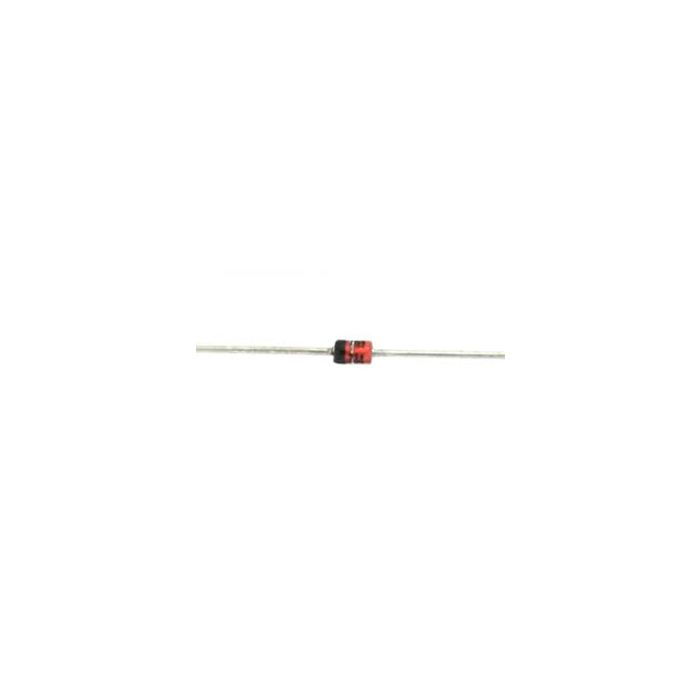

Zener Diode 5.1V 1W 5% DO41 1N47733A
Zener Diode 5.1V 1W 5% DO41 1N47733A:
The 1N4733A is a 5.1V Zener diode with a 1W power dissipation rating, designed for voltage regulation and clamping applications. It provides a stable 5.1V breakdown voltage with a 5% tolerance, suitable for use in moderate-power circuits requiring precise voltage control or protection.
Specifications:
- Zener Voltage (V_Z): 5.1 V
- Power Dissipation: 1 W
- Tolerance: ±5%
- Zener Impedance (Z_Z): 17 Ω (at I_Z = 49 mA)
- Maximum Zener Current (I_ZM): 196 mA
- Reverse Leakage Current (I_R): 5 µA (at V_R = 1 V)
- Forward Voltage (V_F): 1.2 V (at I_F = 200 mA)
- Package Type: DO-41
- Operating Temperature Range: -65°C to 200°C
- Applications: Voltage regulation, voltage reference generation, and over-voltage protection
