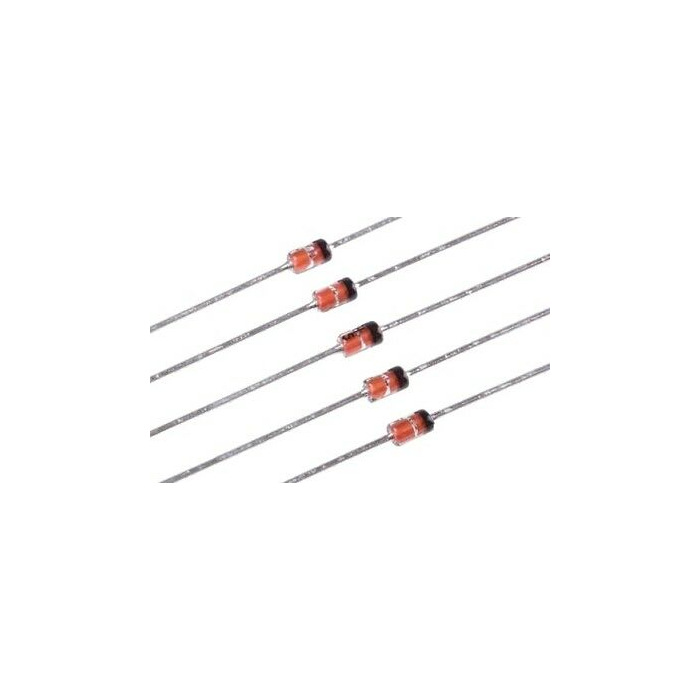

Zener Diode 5V1 500mW 5% DO35 1N5231
Zener Diode 5V1 500mW 5% DO35 1N5231:
The 1N5231 is a 5.1V Zener diode designed for voltage regulation and stabilization applications. Its 5% tolerance ensures a reliable and consistent breakdown voltage for use in low-power circuits, such as reference voltage generation and over-voltage protection.
Specifications:
- Zener Voltage (V_Z): 5.1 V
- Tolerance: 5%
- Power Dissipation: 500 mW
- Package Type: DO-35
- Reverse Leakage Current (I_R): 5 µA (at V_R = 1 V)
- Zener Impedance (Z_Z): 17 Ω (at I_Z = 20 mA)
- Maximum Zener Current (I_ZM): 98 mA
- Operating Temperature Range: -65°C to 200°C
- Forward Voltage (V_F): 1.1 V (at I_F = 10 mA)
- Applications: Voltage regulation, reference voltage generation, and over-voltage protection
