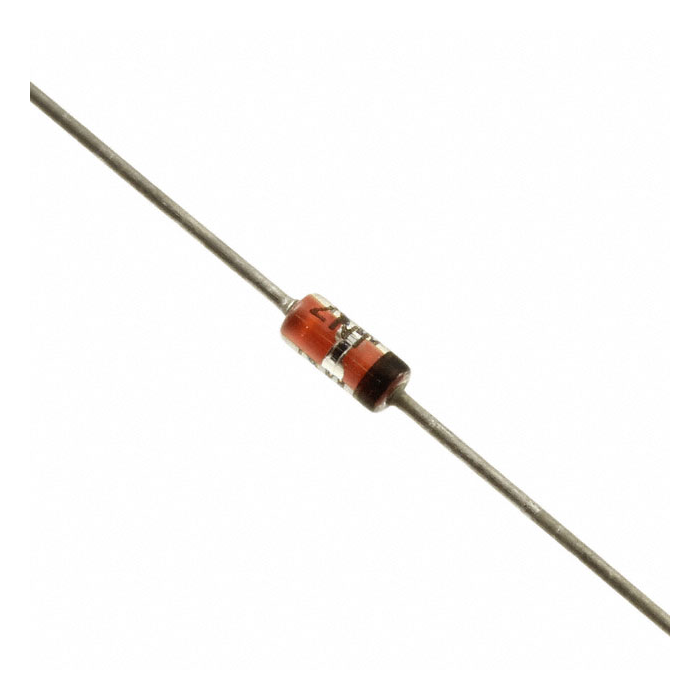

Zener Diode 6.2V 500mW 5% DO35
Zener Diode 6.2V 500mW 5% DO35:
The Zener Diode 6.2V 500mW is designed for voltage regulation and clamping in low-power electronic circuits. Its 6.2V breakdown voltage with 5% tolerance makes it ideal for stable voltage references and over-voltage protection.
Specifications:
- Zener Voltage (V_Z): 6.2 V
- Power Dissipation: 500 mW
- Tolerance: ±5%
- Zener Impedance (Z_Z): 10 Ω (at I_Z = 20 mA)
- Maximum Zener Current (I_ZM): 80 mA
- Reverse Leakage Current (I_R): 5 µA (at V_R = 4 V)
- Forward Voltage (V_F): 1.1 V (at I_F = 10 mA)
- Package Type: DO-35
- Operating Temperature Range: -65°C to 200°C
- Applications: Voltage regulation, voltage reference generation, and over-voltage protection
