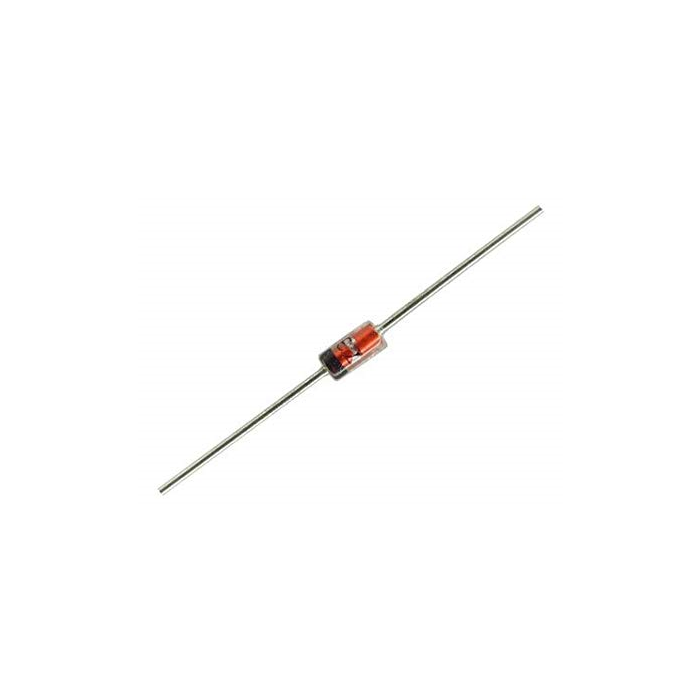

Zener Diode 8.2V 500mW 5% DO35

ZAR 0.36 ZAR 0.31
In stock
SKU
DIO-0011-B01

Zener Diode 8.2V 500mW 5% DO35:

The Zener Diode 12V 500mW is a low-power semiconductor device designed for voltage regulation, clamping, and stabilization applications. It provides a stable 12V breakdown voltage with a 5% tolerance, making it suitable for reference voltage generation and over-voltage protection in compact circuits.

Specifications:

  • Zener Voltage (V_Z): 12 V
  • Power Dissipation: 500 mW
  • Tolerance: ±5%
  • Zener Impedance (Z_Z): 30 Ω (at I_Z = 20 mA)
  • Maximum Zener Current (I_ZM): 41 mA
  • Reverse Leakage Current (I_R): 5 µA (at V_R = 9.1 V)
  • Forward Voltage (V_F): 1.1 V (at I_F = 10 mA)
  • Package Type: DO-35
  • Operating Temperature Range: -65°C to 200°C
  • Applications: Voltage regulation, voltage reference generation, and over-voltage protection
